SWER Single Pole Mounted Transformer

The SWER Single Pole Mounted Transformer from Zhejiang Guangbian Electric Power Technology Co., Ltd is a high-efficiency distribution solution designed for Single Wire Earth Return (SWER) rural and remote power systems. With over 20 years of transformer manufacturing expertise and full compliance with global standards, Guangbian delivers stable, safe, and cost-effective voltage conversion for off-grid and weak-grid environments.

What is a SWER Single Pole Mounted Transformer?

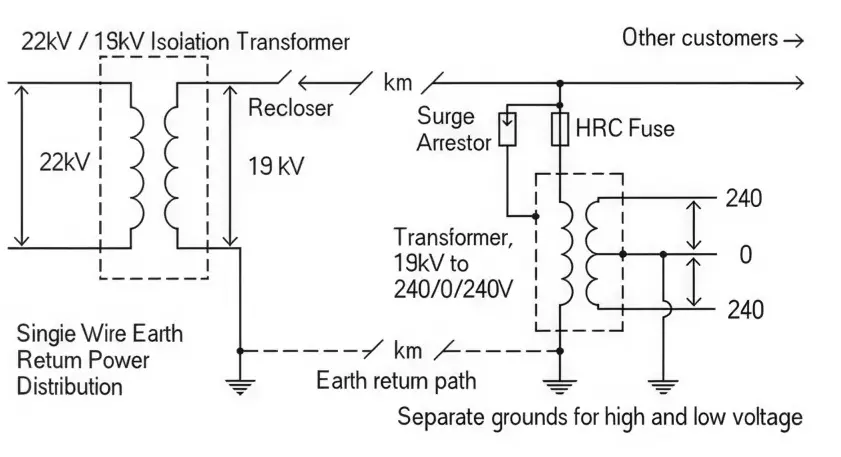

A SWER Single Pole Mounted Transformer is a specialized pole-mounted distribution transformer used in single-wire earth return systems, typically deployed in rural electrification projects where traditional three-phase infrastructure is not available.

It efficiently steps down medium voltage distribution power to usable low voltage for residential, agricultural, and small industrial applications.

It is widely used in remote grids due to its:

● Simplified installation structure

● Reduced infrastructure cost

● High efficiency in long-distance distribution

● Strong adaptability in rural terrains

What Makes This SWER Transformer Different?

Most standard transformers aren't designed with SWER operating principles in mind. The result? Premature insulation breakdown, voltage instability, failed inspections, and drastically shortened service life. GUANGBIAN engineered this unit specifically for the demands of SWER networks - eliminating these pain points from the ground up.

What Sets This Unit Apart?

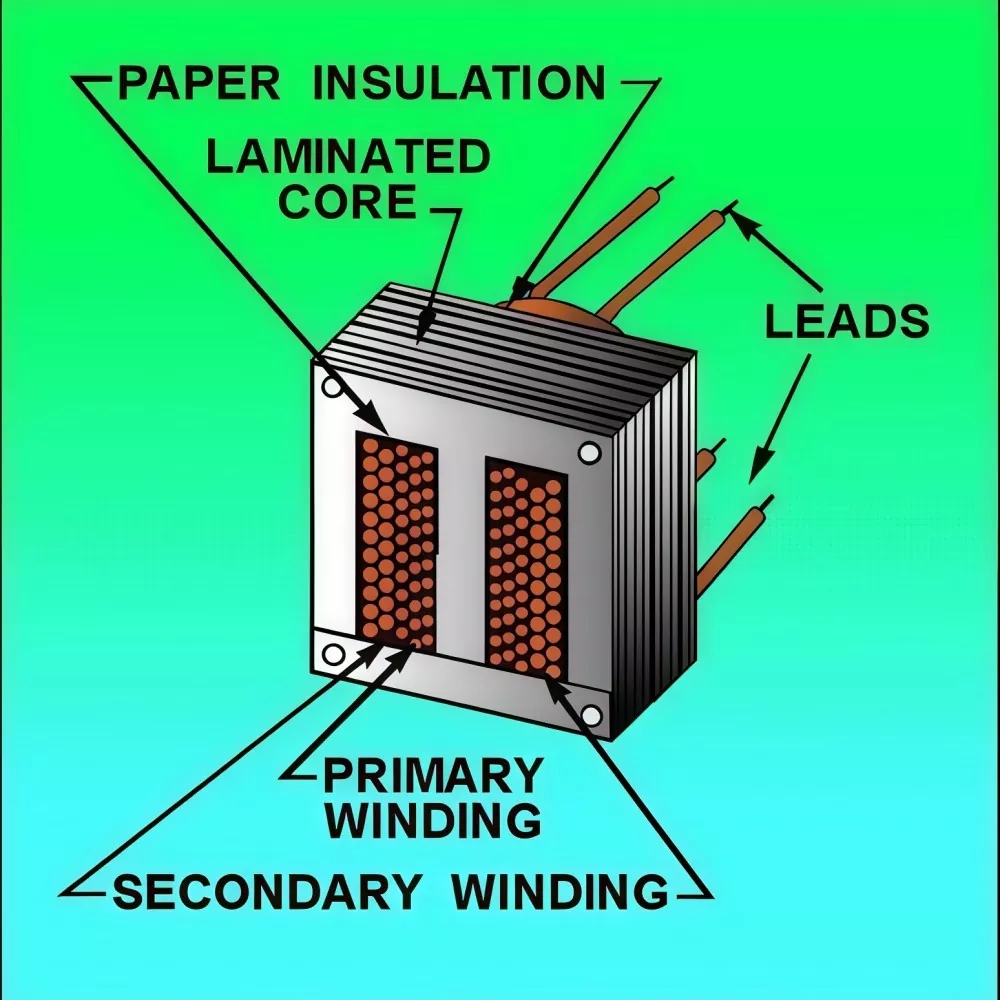

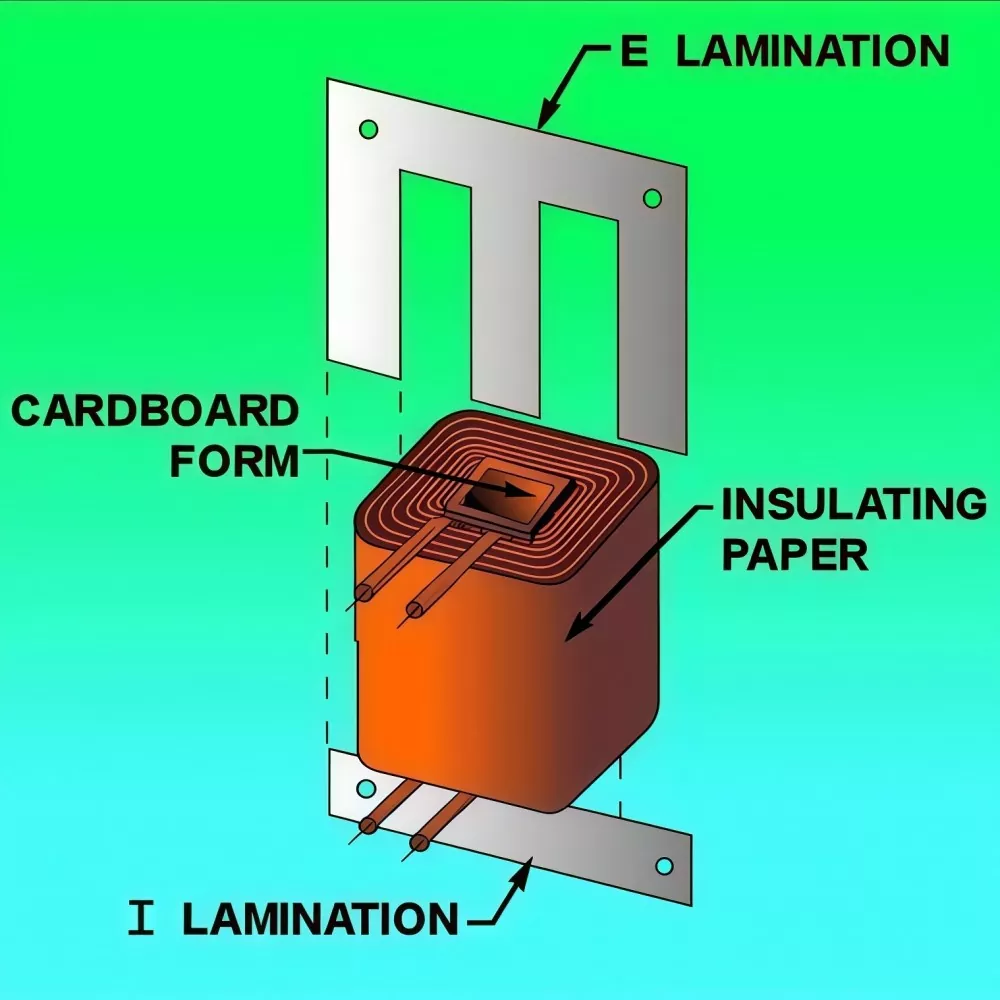

Winding Design Tuned for SWER Duty：

The winding of the SWER Single Pole Mounted Transformer is optimized for SWER-specific voltage conditions instead of using a uniform insulation structure.

Gradient insulation design from A terminal (line) to X terminal (earth)

A terminal reinforced for continuous line voltage stress

Progressive insulation matched to actual winding voltage levels

X terminal strengthened for direct pole grounding connection

Built for asymmetrical SWER voltage conditions, unlike standard transformers

This design improves reliability and insulation safety in rural SWER distribution systems.

Traditional single-phase transformers use uniform semi-insulation across both terminals. In SWER duty, this means insulation stress essentially doubles—and failure typically occurs within 3–5 years. GUANGBIAN's dedicated approach keeps insulation stress within design limits throughout the transformer's full service life.

How the Grounding Setup Keeps Voltage Stable？

● Oversized grounding terminal cross-section reduces earth-path resistance and improves current return stability

● Lower resistance helps prevent loose connection risks and local overheating

● Ensures a stable closed-loop SWER current path with output voltage fluctuation within ±2%

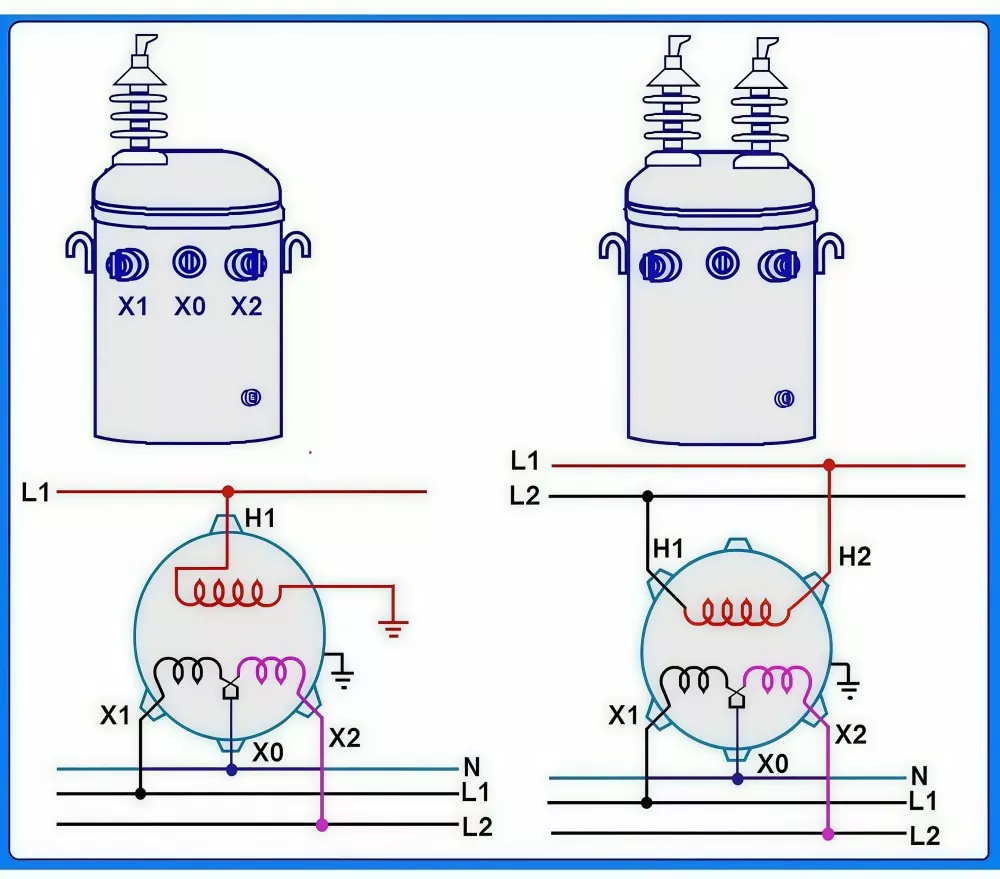

● Windings follow IEC A/X terminal labeling standards, preventing wiring errors such as reversed polarity and ensuring correct SWER installation

Long-Distance Voltage Regulation：

● Equipped with a 5-position no-load tap changer (18kV–20kV range)

● Compensates for voltage drop across long SWER distribution lines

● Maintains stable 240V output from start to end of line

● All tap settings are factory-calibrated under IEC accuracy standards

This ensures consistent performance and protection of downstream equipment in long-distance rural power networks.

How It Holds Up in Tough Conditions?

The oil-immersed sealed housing keeps water and dust out, handles temperature swings, and shrugs off UV exposure. It runs from -40°C all the way up to +55°C - so high-altitude plateaus, open pastures, wooded areas, and desert flats all fall within its operating window without any special modifications.

ONAN cooling—short for oil natural air natural - relies on no fans, no pumps, nothing that spins or wears out. After it's bolted to the pole, it pretty much takes care of itself. For crews working hours away from the nearest service truck, that translates to far lower upkeep costs over the unit's life.

Meeting International Standards

Every unit is designed, built, and tested to IEC 60076—the globally recognized standard for power transformers. Paperwork and traceability are in place from the factory floor.

Full factory test reports come with each transformer—useful when you're bidding on projects or need to clear an inspection.

SWER systems see single-phase ground faults differently than standard grids. This transformer is rated to take 20 times its rated current for a full 2 seconds under those fault conditions—when paired with standard line protection, it clears faults fast and keeps damage out of the equipment.

Where It Gets Used?

The SWER Single Pole Mounted Transformer is ideal for low-cost, long-distance rural and remote power supply:

● Rural electrification: powering isolated homes with up to ~70% lower line construction cost vs. conventional systems

● Remote unmanned sites: telecom towers, weather stations, forest/fire monitoring points, border posts

● Agriculture: irrigation pumps, livestock systems, greenhouses, and scattered farm equipment

● Construction & mining camps: temporary power for highways, railways, and mining operations before grid extension

● Islands & off-grid facilities: small resorts, ranger stations, and remote tourist infrastructure

A practical solution for areas where extending conventional three-phase networks is not cost-effective.

Why GUANGBIAN SWER Unit Performs Better？

Standard transformers often struggle in SWER systems, leading to insulation stress, voltage instability, and higher maintenance needs.

The GUANGBIAN SWER Single Pole Mounted Transformer is engineered specifically for SWER operation:

● Purpose-built winding and insulation design for SWER conditions

● Optimized grounding structure for stable return current

● Improved voltage stability and system reliability

● Reduced maintenance issues and longer service life

● Easier compliance with inspection requirements

● Designed for real-world SWER applications, not adapted from conventional transformer models.

Global Standards & Quality Assurance

Zhejiang Guangbian Electric Power Technology Co., Ltd has built a strong technical foundation since 2004, evolving from a domestic transformer manufacturer into a global supplier.

Key advantages include:

● 20+ years of transformer engineering experience

● Certified engineering team with international standard expertise

● Multi-workshop production system ensuring full process traceability

● Continuous improvement in design, efficiency, and safety compliance

● Independent export operations established in 2020

This ensures every SWER Single Pole Mounted Transformer meets global expectations for reliability and safety.
