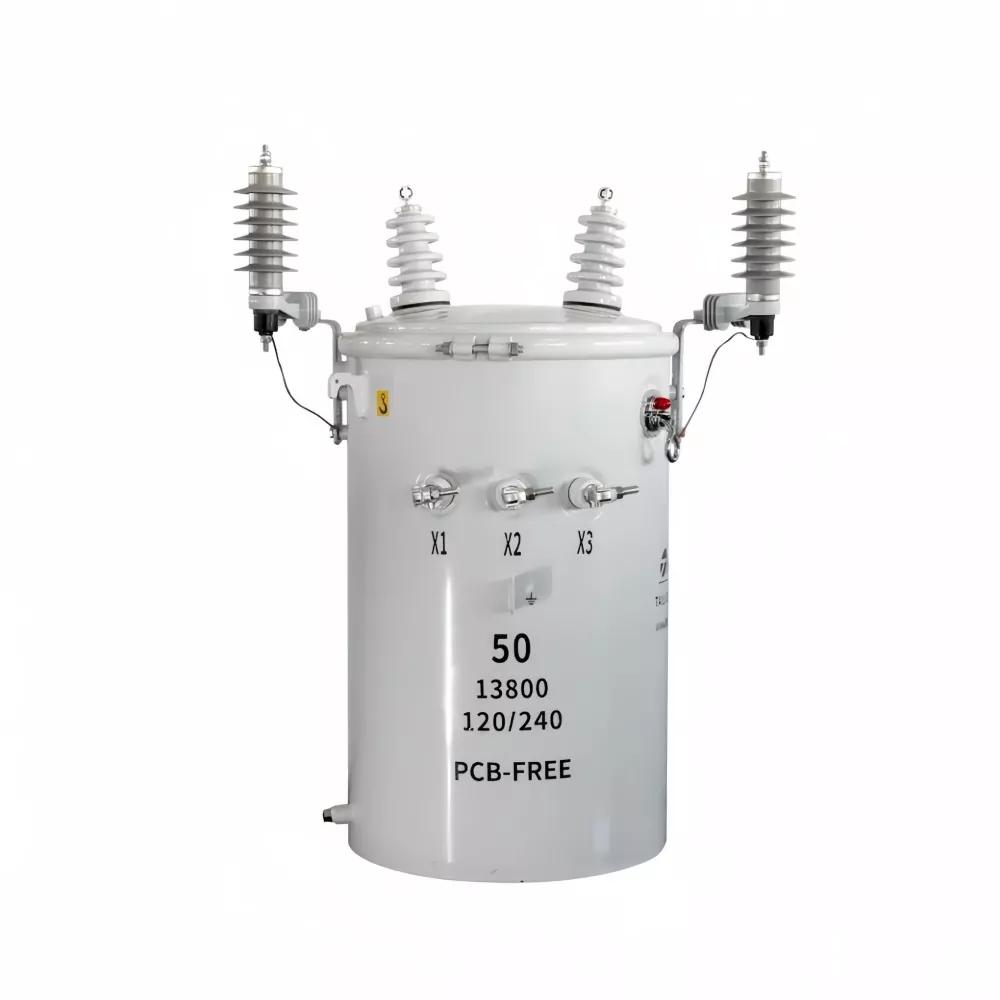

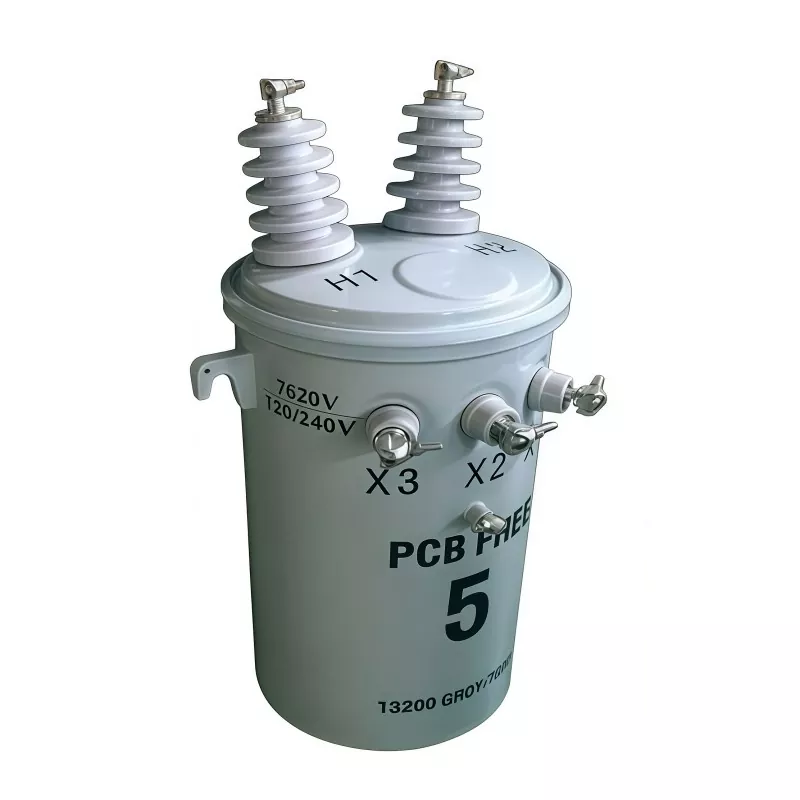

5KVA Pole-Mounted Transformer

The 5KVA Pole-Mounted Transformer by GUANGBIAN (Zhejiang Guangbian Electric Power Technology Co., Ltd.) is a compact and highly efficient overhead distribution transformer designed for stable low-voltage power supply in residential, rural, and light commercial applications. Built with over 20 years of transformer manufacturing expertise, GUANGBIAN ensures high reliability, low loss, and long service life for global power networks.

Key Features

● Compact structure for pole-mounted installation

● High-efficiency silicon steel core to reduce no-load loss

● Oil-immersed or dry-type optional design

● Strong overload resistance and thermal stability

● Designed for long-term outdoor operation

● Easy installation and low maintenance requirements

Each 5KVA Pole-Mounted Transformer is tested under full load conditions to ensure consistent performance in real-world applications.

Product Applications

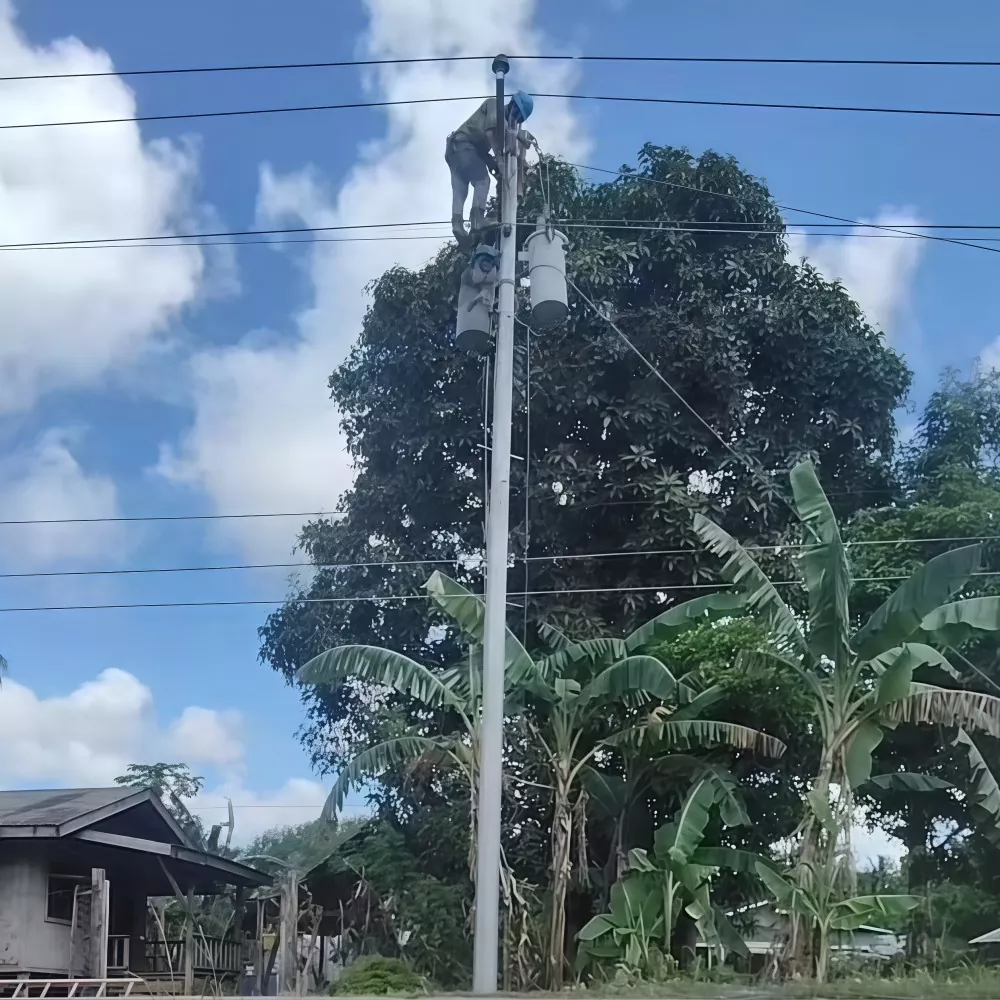

Scenario 1: Remote single-home or small village power

This is where a 5KVA pole-mounted transformer gets used the most. A couple of houses scattered in the mountains, kilometers from the nearest substation—running a dedicated line would cost too much. Instead, you hang a single phase transformer on the closest pole, step down 12,470V to 120/240V, and you're done.

What can 5KVA actually power? A few lights, a TV, a fridge, maybe an AC unit running occasionally. That covers the basics. Need more? Step up to 10KVA or 15KVA.

Here's the thing about these installations: once it's up on the pole, nobody's touching it for years. Reliability has to be rock-solid. GUANGBIAN's 5KVA unit is a CSP transformer—Completely Self-Protected. Current-limiting fuse, low-voltage switch, surge arrester, all built in. No extra protective gear to install on site. Less work during construction, less to maintain afterward.

Scenario 2: Roadside shops and gas stations

Gas stations, small stores, roadside diners along the highway—not much power needed, but it has to stay on. One 5KVA single phase transformer handles it: lighting, cash register, freezer, security cameras. A few kilowatts total.

These locations come with a specific challenge: protection matters. Gas stations have fuel vapors nearby. Shop owners aren't exactly checking on their electrical gear every week. That's where the CSP transformer design pays off. Internal surge arrester (ANSI C62.11, heavy-duty rated)—no worry about lightning strikes. Overload indicator light—the owner can spot trouble at a glance. Current-limiting fuse kicks in automatically during a short circuit, no separate fuse installation needed.

GUANGBIAN supplied 5KVA CSP units for a distribution project in the Caribbean. The client's favorite feedback? "Hang it up and forget about it."

CSP Transformer

Scenario 3: Communication towers and surveillance sites

Cell towers, weather stations, remote cameras in the middle of nowhere—these draw only 1–3 kilowatts, but the power has to stay on. Lose electricity, you lose signal.

A 5KVA pole-mounted transformer fits this job well. Enough capacity without sitting idle and wasting energy. Primary voltage at 12470 Grd Y / 7200V, with a 5-position tap changer (±5%) to keep output steady when the incoming voltage drifts. That stability matters for communication gear.

No-load loss is just 32 watts. Load loss, 79 watts. When a unit runs 24/7, those low-loss numbers add up to real savings over a year.

The enclosure uses epoxy or aliphatic polyurethane coating, minimum 85 microns thick—way tougher than standard paint. Coastal or mountain sites where corrosion is a constant threat? This holds up.

Do any of these scenarios match yours? 5KVA isn't much in terms of capacity, but in the right situation, it's hard to beat on value. Need a configuration for a specific project? Reach out to GUANGBIAN. We manufacture at our China factory and have engineers ready to put together a custom proposal.

Why Choose GUANGBIAN 5KVA Pole-Mounted Transformer?

● Over 20 years of manufacturing experience

● Full in-house production system

● Strong engineering and customization capability

● Stable quality control under ISO-based processes

● Proven global export track record

● Competitive factory pricing with reliable delivery

The 5KVA Pole-Mounted Transformer is not only a product but a result of continuous engineering refinement and global application experience.

Contact & Custom Solutions

GUANGBIAN provides customized solutions for different voltage levels, environmental conditions, and regional standards. Whether for grid expansion or rural electrification, our engineering team can design a tailored 5KVA Pole-Mounted Transformer solution for your project.

We welcome global partners to contact us for technical consultation and cooperation opportunities.
