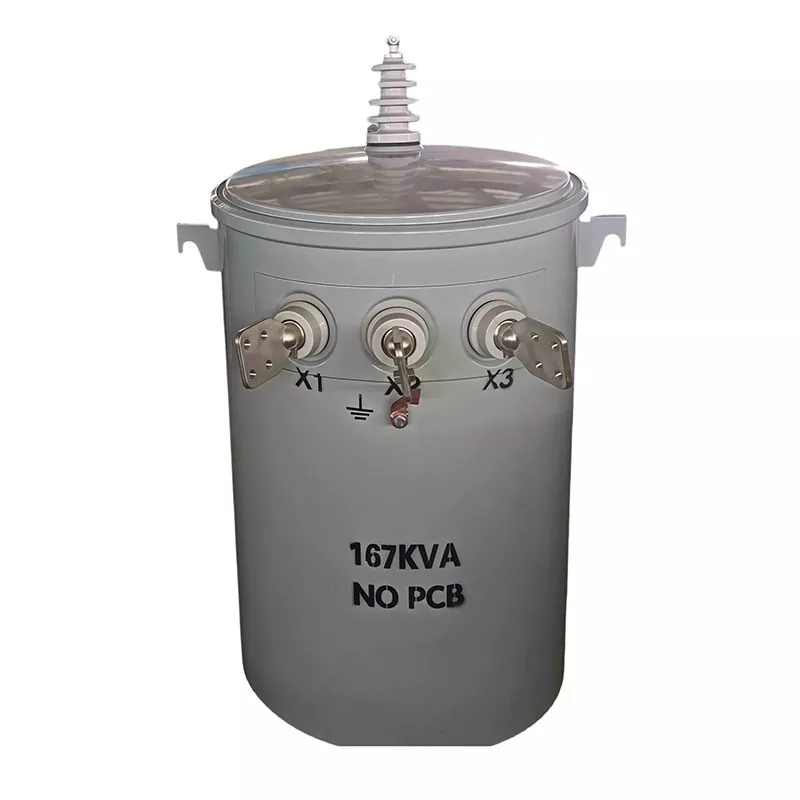

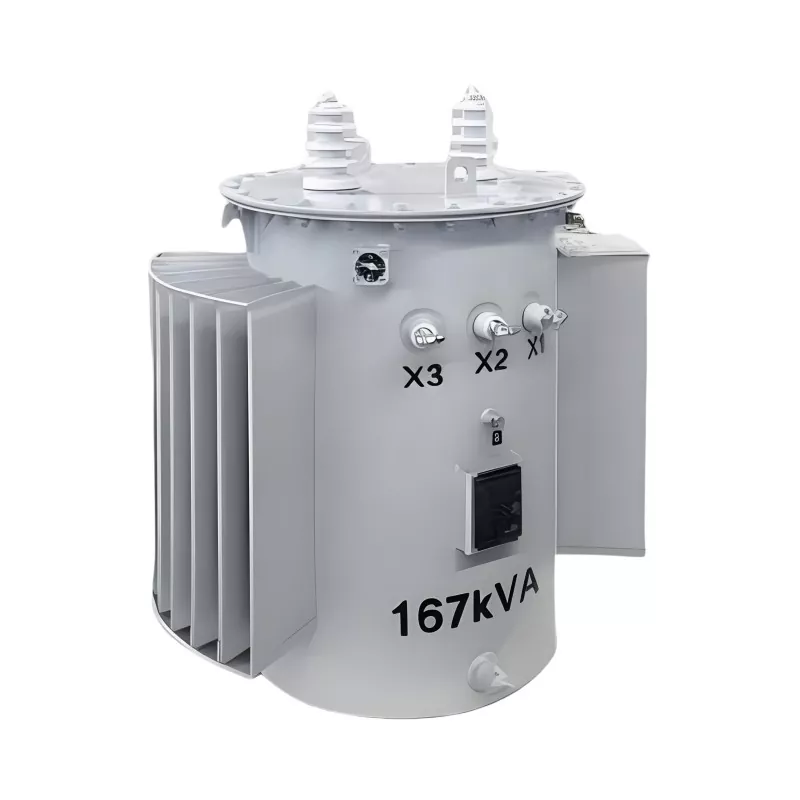

167KVA Pole-Mounted Transformer

The 167kVA Pole-Mounted Transformer is a high-performance overhead distribution transformer designed for reliable outdoor power supply and voltage conversion in medium-capacity electrical networks. Manufactured by Guangbian, a professional transformer manufacturer and supplier in China, this unit ensures stable energy distribution, low loss operation, and long service life in demanding utility and industrial environments.

It is widely used in power distribution systems, rural electrification projects, industrial zones, and commercial infrastructure, where stable and efficient electricity transmission is required.
Technical Specifications

Working Principle

The 167kVA Pole-Mounted Transformer operates based on the principle of electromagnetic induction. When alternating current flows through the primary winding, it generates a magnetic field in the iron core, which induces a lower or higher voltage in the secondary winding depending on system requirements.

This allows safe and efficient voltage conversion for long-distance power transmission and local distribution, ensuring stable electricity supply to end users.

Key Advantages

1. High Energy Efficiency

Optimized core design significantly reduces no-load and load losses, improving overall energy efficiency.

2. Strong Outdoor Durability

Designed for pole-mounted installation with excellent resistance to weather, humidity, and corrosion.

3. Stable Power Distribution

Ensures consistent voltage output and reliable performance under fluctuating load conditions.

4. Low Maintenance Cost

Sealed oil tank structure reduces maintenance frequency and operational costs.

5. High Safety Performance

Equipped with advanced insulation and protection design to prevent short-circuit and overload risks.

6. Long Service Life

High-quality silicon steel core and premium winding materials ensure extended operational lifespan.

How do you pick the right capacity?

A lot of people think, "We've got 80 homes, so an 80KVA unit should do it." That math doesn't work.

The right approach: start with each household's peak demand. Summer AC running, winter heating cranked up—one home might draw 5–8 kW at its worst. Eighty homes? That's 400–640 kW on paper.

But here's the catch: you don't size a single phase transformer based on peak demand alone. The odds of every home hitting max load at the same time are almost zero. That's why we apply a "demand factor"—typically 0.4–0.5 for residential areas.

Run the transformer capacity calculation: 80 homes × 0.4 to 0.5 demand factor = 160–320 kW actual demand. A 167KVA unit fits well here, with some headroom built in.

Planning to expand later? Consider going bigger upfront—swapping out a unit down the road costs more than sizing up once.

Match the voltage rating

Your primary voltage needs to match whatever the local grid is delivering. Across much of North America, that means 12470 Grd Y / 7200V—12,470V between phases, 7,200V to neutral.

The 12470v transformer we manufacture at GUANGBIAN's China facility ships with five tap positions: +2.5%, 0%, -2.5%, -5%, -7.5%. Grid acting up? Shift the tap to hold output voltage where it should be. Double-check your local system voltage before placing an order, though.

Secondary side is straightforward—120/240V out of this unit. The 240V leg handles bigger draws; 120V covers your lights and wall outlets.

Factor in the installation environment

Where you put the transformer changes what you need:

Altitude: Above 1,000 meters, the air thins out and cooling gets worse. You'll need to derate the unit or go with a special high-altitude design.

Temperature range: Extreme heat or cold? Check the temperature rise margin. This 167KVA single phase transformer runs ONAN cooling and works fine from -30°C to 45°C.

Corrosion risk: Coastal areas, saline soil, chemical zones—high salt or corrosive gases in the air demand better protection. Enamel-coated porcelain bushings hold up better in these environments.

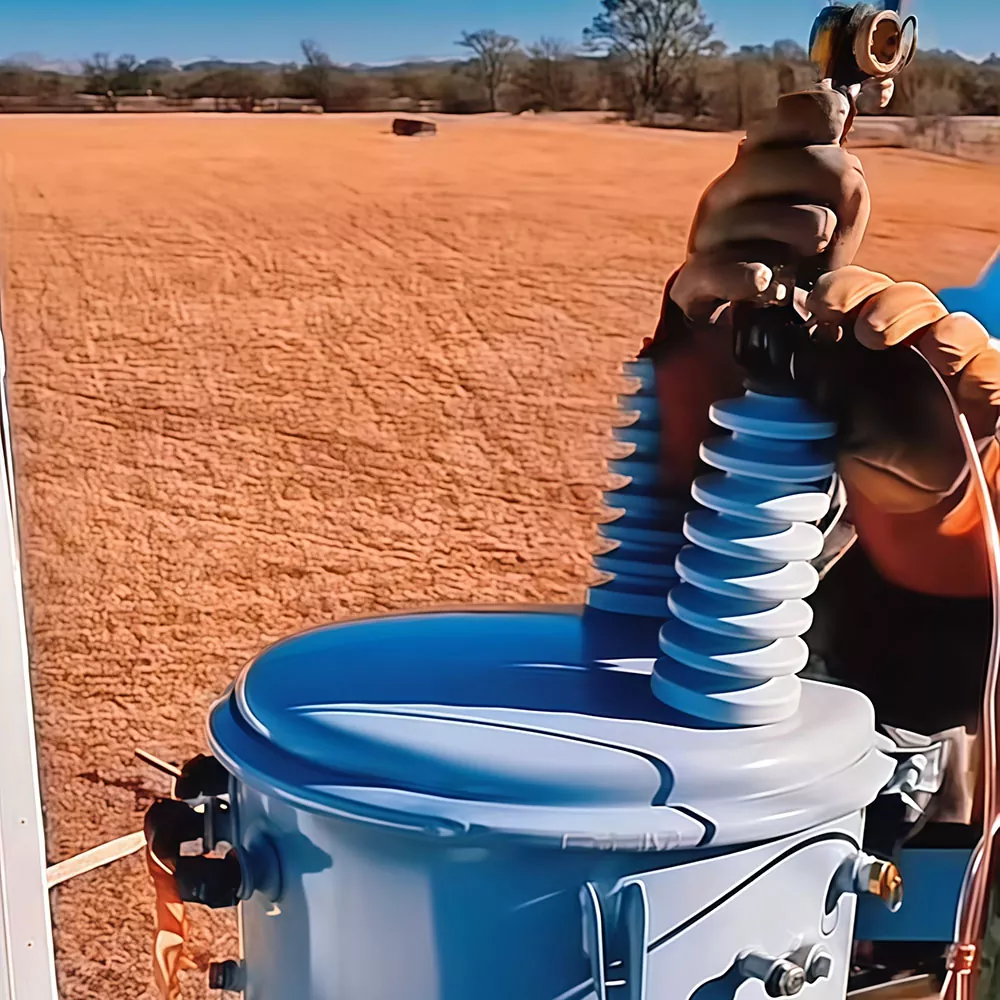

Mounting: 167KVA is a hefty unit. It typically goes on a platform with two brackets (591mm center-to-center), not hung directly on a pole. Make sure your site can handle that.

About certification standards

Many tenders require IEEE C57.12 or ANSI C57.12.20 certification. These aren't optional extras—they're dealbreakers for bidding.

Full disclosure: GUANGBIAN hasn't certified our pole-mounted transformers to these standards yet. But here's what we can do—if your bid needs the certification, we'll work with you to get it done. Larger orders? We cover the testing fees. Smaller quantities? The client handles the testing cost. Timeline and process details, just reach out and ask.

We label our specs honestly. No-load loss 375W, load loss 1365W, impedance ≤2.5%. What's on the datasheet is what you get. That's our baseline commitment.

Getting the selection right takes some thought, but it's not rocket science. Nail down capacity, voltage, environment, and certification—the big four—and you're in good shape. Questions along the way? Contact GUANGBIAN. We manufacture at our China factory and offer free technical support.

FAQ

Q1: What is a 167kVA pole-mounted transformer used for?

It is used for medium-capacity power distribution in overhead electrical networks.

Q2: Is it suitable for rural electrification projects?

Yes, it is widely used in rural and remote grid expansion systems.

Q3: Can voltage be customized?

Yes, Guangbian provides full customization for both primary and secondary voltage.

Q4: What is the lifespan of this transformer?

Typically 20–30 years depending on operating conditions and maintenance.

Q5: Do you support OEM or wholesale orders?

Yes, Guangbian is a factory supplier supporting OEM, ODM, and wholesale supply.
