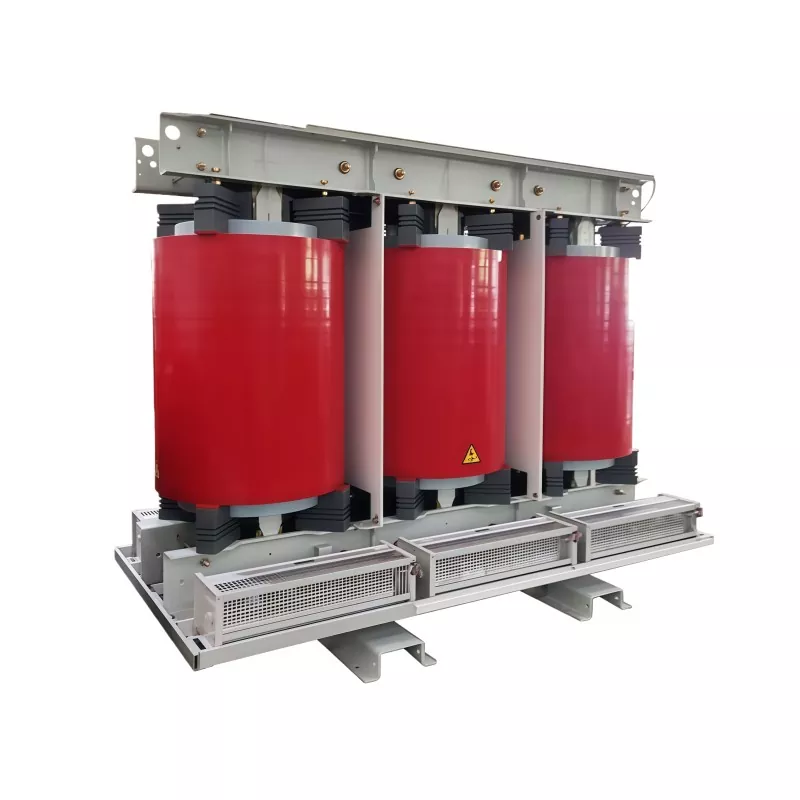

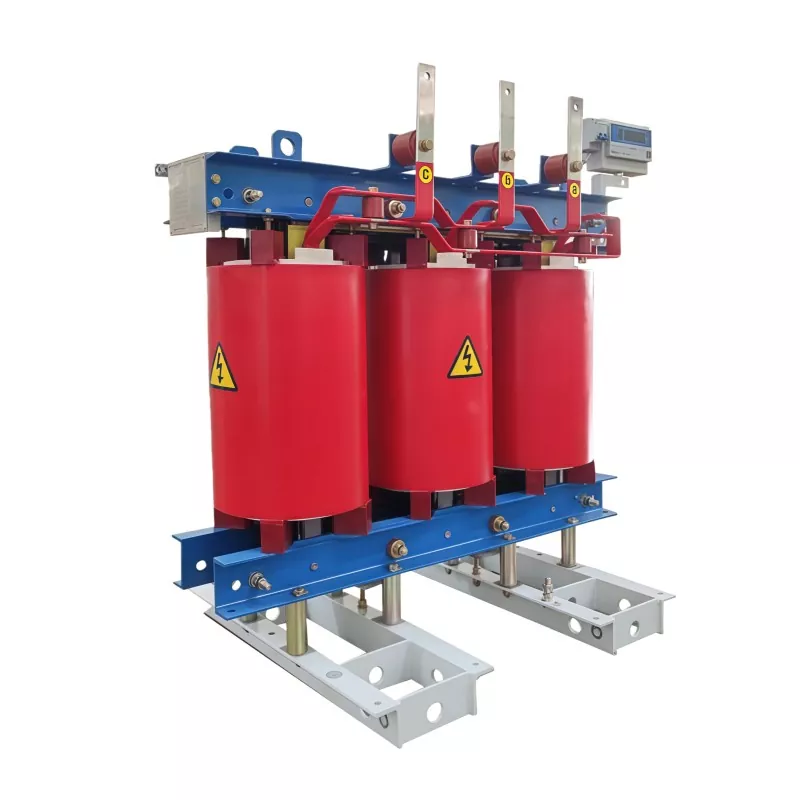

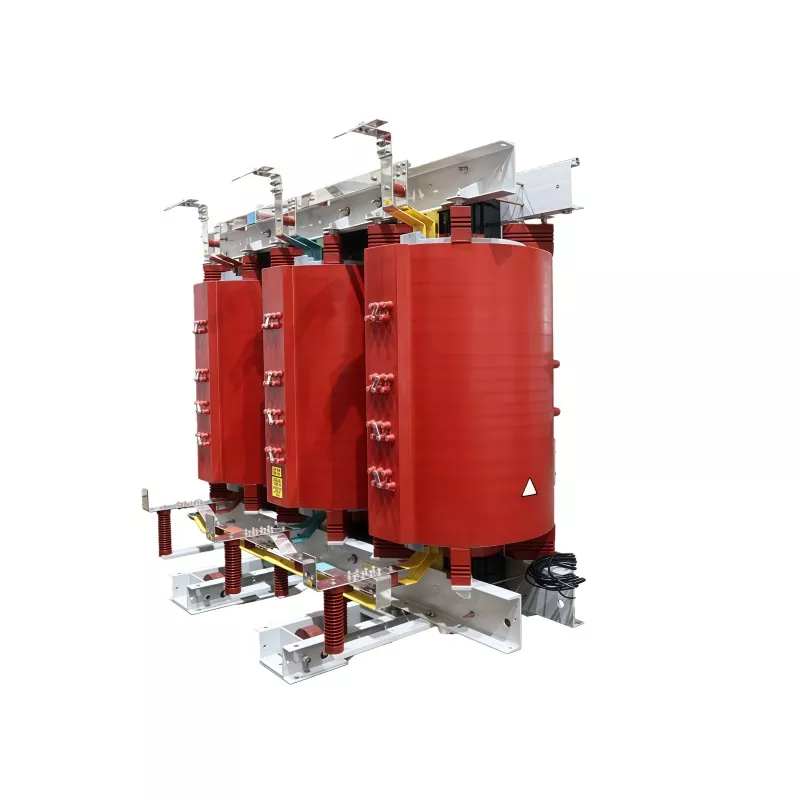

1500KVA 480V Dry Type isolation Transformer
Engineered by Guangbian, this Energy-Efficient 1500KVA 480V Dry Type isolation Transformer is suitable for converting the standard three-phase 480V grid voltage to the 380V rated voltage required for industrial equipment under applicable operating conditions.
Capacity:1500KVA
input voltage: 480V
output voltage：380V
Frequency: 50/60Hz
Connection: Dyn11
Phase: Three
Cooling method:AF/AN
Winding material: Aluminum / Copper
Impedance voltage:5.5%
No load:≤1.8KW-≤2.2KW(customizable)
Load:≤18.5KW-≤19.2KW(customizable)
This 1500KVA 480V Dry Type isolation Transformer produced by GUANGBIAN is mainly used for voltage matching and electrical isolation protection. Its primary application scenario covers large-scale industrial equipment systems requiring 480V input voltage and 380V output voltage.
The 1500KVA isolationTransformer can accurately convert 480V grid voltage to 380V operating voltage, while providing electrical isolation to isolate and block surge voltages, harmonic interferences and ground fault currents from the primary-side power grid from propagating to the secondary-side circuitry of industrial equipment, thereby protecting large industrial equipment. It also prevents grid instability induced by malfunctions of large industrial equipment and reduces the overall fault risk of the power supply system.
This transformer is widely used in:
● Industrial manufacturing plants
● Commercial buildings
● Data centers
● Hospitals
● Renewable energy projects
● Automation systems
● Mining operations
● HVAC power systems
Its advanced insulation system and vacuum pressure impregnation technology help improve dielectric strength, reduce partial discharge, and extend service life.
Technical Document
| Parameter Name | Parameter Value |
| Rated Capacity | 1500KVA |
| High-Voltage Rated Input Voltage | 480V |
| Low-Voltage Rated Output Voltage | 380V |
| Rated Frequency | 50/60Hz |
| Connection Group | Dyn11 |
| Number of Phases | Three-phase |
| Winding Material | Aluminum/Copper |
| Impedance Voltage | 5.50% |
| Cooling Method | AF/AN |
| No-Load Loss | ≤1.8KW-≤2.2KW(customizable) |
| Load Loss | ≤18.5KW-≤19.2KW(customizable) |
| Insulation Class | Class F |
| Winding Temperature Rise Limit | 150K |
| Noise Level (No-Load) | ≤65dB(A) |
Operating Environment
Operating Temperature Range: Normally designed as -25°C to +40°C
Relative Humidity: At 25°C ambient temperature, the relative humidity shall not exceed 90%, free of condensation.
Altitude Requirement: Standard applicable altitude: ≤ 1000 m
Customization Service: Customization is available for special operating conditions.
Our Factory
Sheet metal workshop
Foil winding workshop
Winding workshop
Winding oven workshop
Transformer assembly workshop
Transformer commissioning workshop
Frequently Asked Questions
1.What is a dry type isolation transformer?
A dry type isolation transformer transfers electrical energy between circuits while providing galvanic isolation without using insulating oil.
2.Why choose a 480V dry type transformer?
480V transformers are commonly used in industrial and commercial power systems because they provide efficient power distribution for heavy-duty electrical equipment.
3.Can the transformer be customized?
Yes. We support custom voltage ratings, impedance, cooling methods, enclosure protection levels, and installation requirements.
4.Is this transformer suitable for indoor installation?
Yes. Dry type transformers are ideal for indoor environments due to their fire-resistant and environmentally friendly design.
Request a Quote now
If you are looking for a high-quality 1500KVA 480V Dry Type Isolation Transformer manufacturer in China, contact us today for technical support, pricing, drawings, and customized solutions.
We provide:
● Competitive factory price
● Fast quotation
● OEM/ODM service
● Global shipping support
● Professional technical consultation
