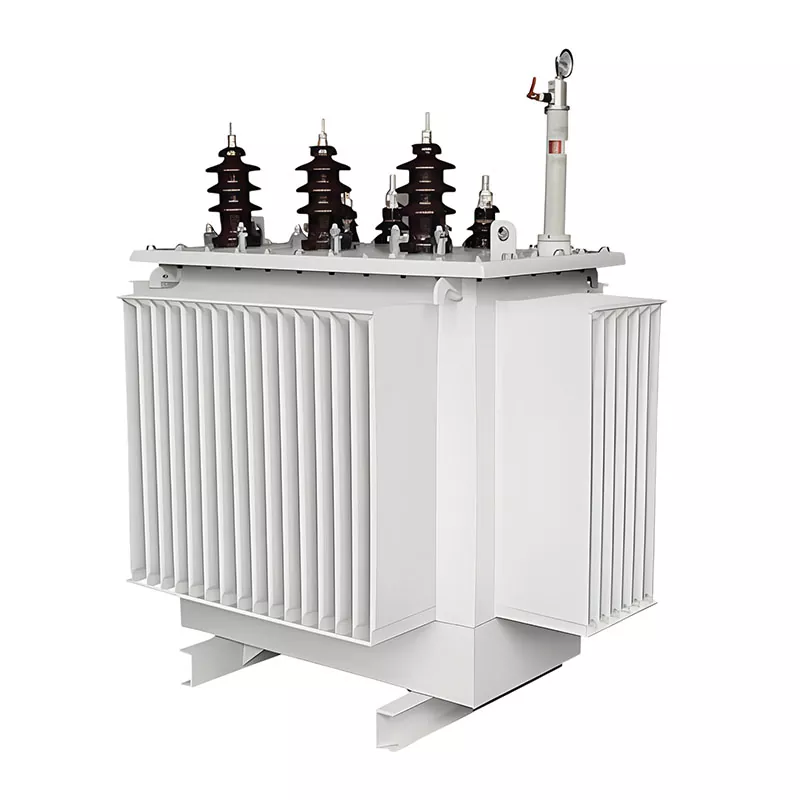

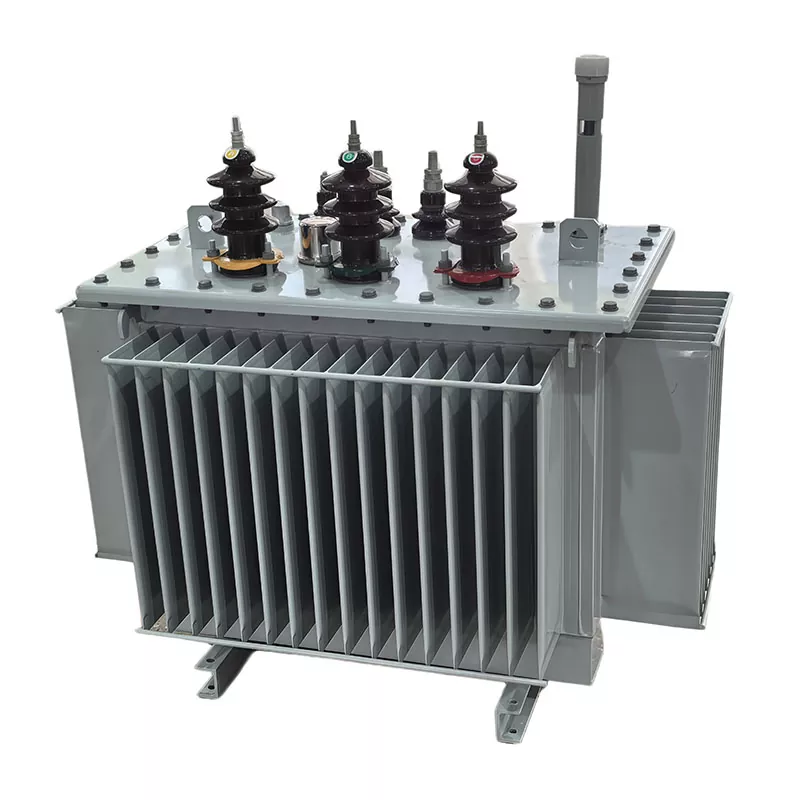

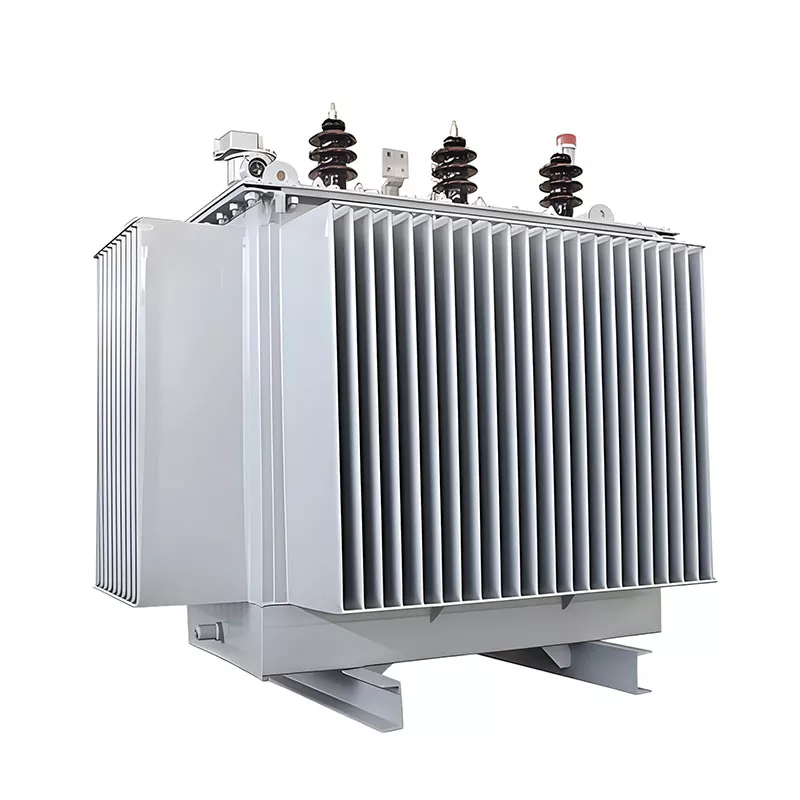

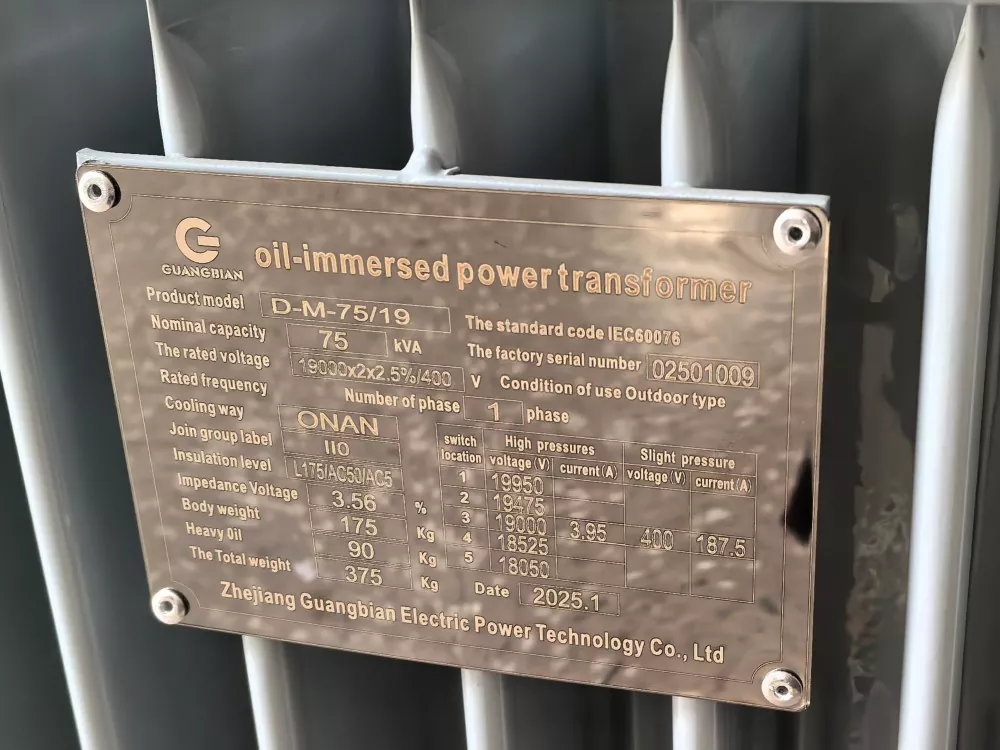

Replacement Oil Immersed Transformer

A Replacement Oil Immersed Transformer is a type of oil-filled power transformer specifically designed to replace an existing transformer in an operating power distribution system, typically due to aging equipment, failure, capacity limitations, or efficiency upgrade requirements.

Unlike transformers used in new installations, a replacement transformer is engineered with a strong focus on system compatibility, physical interchangeability, and seamless integration with existing electrical infrastructure.

Engineering Definition

From an electrical engineering perspective, a Replacement Oil Immersed Transformer can be defined as:

A power transformer designed or optimized according to the existing network conditions—such as voltage level, vector group, installation dimensions, and load profile—so that it can directly replace an in-service oil immersed transformer without major modification to the original system.

Key Technical Characteristics

A typical Replacement Oil Immersed Transformer is defined by the following technical requirements:

Voltage Compatibility: Matches existing system levels such as 6kV/0.4kV, 10kV/0.4kV, etc.

Installation Interchangeability: Designed to fit existing foundations, cable entry points, and substation layout

Vector Group Matching: Commonly Dyn11 or identical to the original transformer configuration

Short-Circuit Impedance Coordination: Typically designed within the 5%–8% range to ensure system stability

Performance Optimization: May improve efficiency, reduce losses, or enhance thermal performance compared to the replaced unit

Figure out the right size first

Here's an example: your current load is 800kVA, and you're adding 400kVA of new demand. Factor in some growth margin, and 1250-1600kVA makes sense. Don't just look at today's numbers—leaving some headroom is always a safe bet.

When doing transformer capacity calculation, keep these parameters in mind: voltage level should match your existing system (like 10kV/0.4kV), vector group Dyn11 works for most commercial applications, and impedance of 5-8% is standard. If you're unsure, GUANGBIAN's China factory team can review your setup and confirm the specs before manufacture.

What to prepare before the swap?

Three things to check:

1.Electrical assessment — Can your busbars and cables handle higher current? Does the protection scheme need adjustments?

2.Structural check — Foundation size, access route for moving the unit in, ventilation conditions.

3.Utility coordination — A capacity upgrade might require changes to your incoming supply. Get the power shutdown permit sorted early.

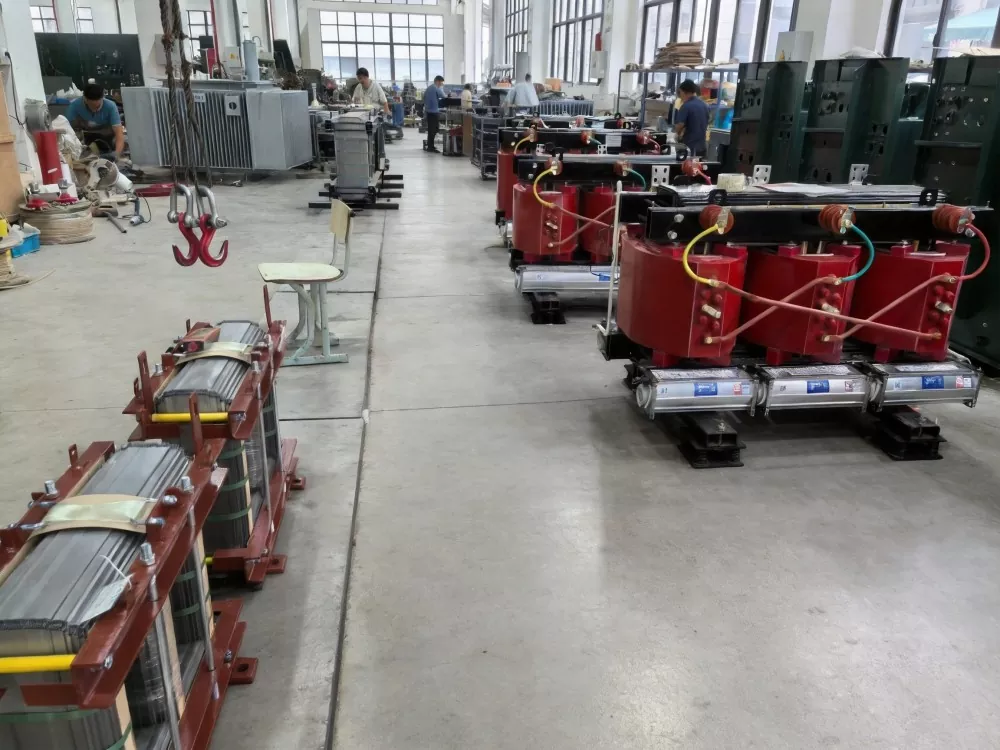

If you're planning a transformer replacement project, GUANGBIAN's technical team from our China factory can help review these items. We've handled similar cases at our manufacturing facility and know what details often get overlooked.

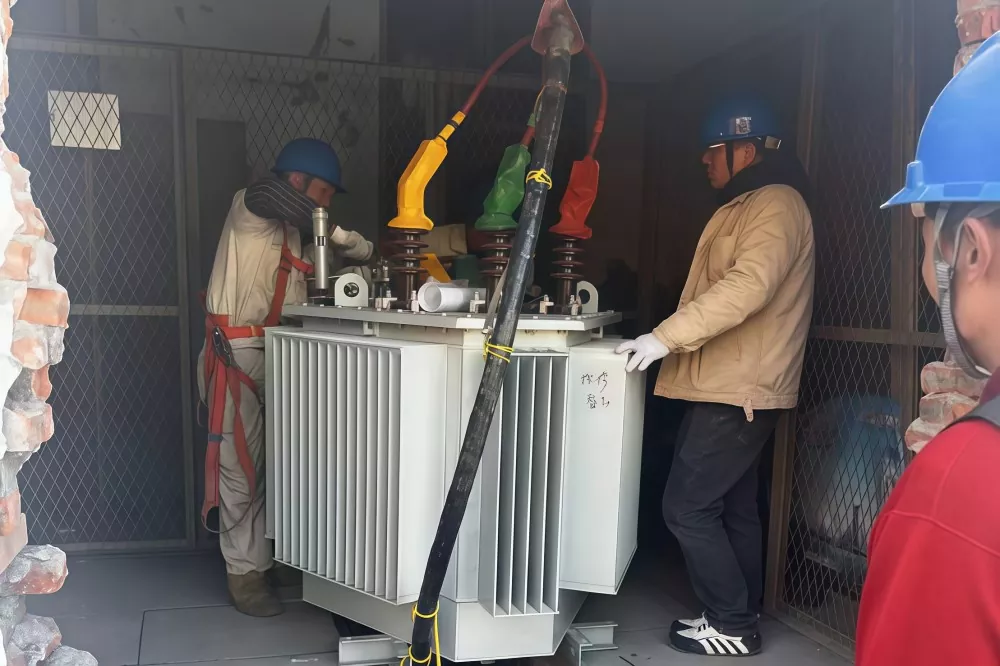

Installation and commissioning

Power off → Disconnect → Remove old unit → Position new transformer → Wiring → Testing → Energize

Don't skip the testing step: turns ratio test, insulation resistance, vector group verification, resistance measurement. Everything has to pass before you flip the switch. During the first few weeks, keep an eye on temperature, listen for unusual noise, check for vibration.

How much does it cost?

For a 1250kVA unit, the transformer itself runs $25,000–45,000. With installation and modifications, total project cost lands around $35,000–75,000. If your existing unit has been running for nearly 20 years, replacing it with a new one makes more sense than adding a parallel unit—less maintenance hassle, better efficiency.

After installation, keep the test reports and as-built drawings on file. Check temperatures quarterly, do an oil analysis annually (for oil-filled types). With proper care, this equipment should run smoothly for 20–30 years.

At GUANGBIAN's China factory, we manufacture transformers that are built for the long haul. Whether you're in the transformer selection phase or need specs reviewed, our team can assist.

Difference from Standard New Installation Transformers

FAQ

1. What is a Replacement Oil Immersed Transformer?

It is an oil-immersed transformer designed to replace an existing transformer in an operating power system. It is built to match the original electrical conditions so the system can continue running with minimal modification.

2. When should a transformer be replaced?

Replacement is needed when the transformer is old (typically 15–25+ years), frequently fails, cannot meet current load demand, or has high maintenance costs

3. How do I choose the correct capacity for replacement?

Capacity is selected based on current load, future expansion (usually 15–25% margin), and system conditions such as voltage level and installation limitations.

4. Can a replacement transformer increase capacity?

Yes. A replacement unit can be upgraded to higher capacity, but the existing cables, switchgear, and protection system must be checked for compatibility.

5. What must match when replacing a transformer?

Key parameters include voltage ratio, vector group (commonly Dyn11), impedance (about 5–8%), and physical installation dimensions.

6. How long does the replacement process take?

Installation and replacement usually take 1–3 days, depending on site conditions, plus additional time for testing and commissioning.
