75KVA Oil Immersed Transformer

The 75kVA oil immersed transformer is a flexible step-down solution with primary voltages from 6kV to 35kV and secondary outputs such as 400V or 480V, customized to match different grid requirements. It supports both 50Hz and 60Hz systems, making it suitable for multi-market projects.

At the Guangbian factory, units are commonly designed with Dyn11 or Yyn0 vector groups depending on load conditions, with Dyn11 preferred for mixed or single-phase loads. Impedance is typically 4.5%–6%, balancing fault protection and operating efficiency for stable power distribution in industrial and utility applications.

Construction Details That Affect Performance

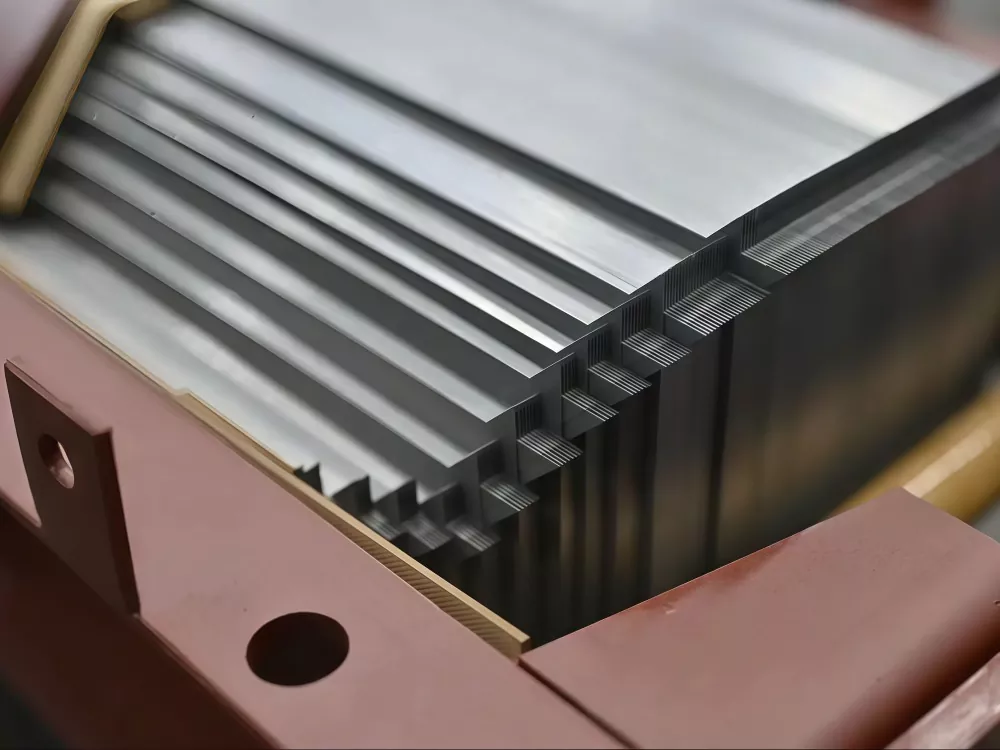

The performance of a 75kVA oil immersed transformer mainly depends on key construction details. It uses cold-rolled silicon steel core for stable magnetic performance, while windings can be copper or aluminum depending on cost and efficiency requirements.

Copper windings deliver superior conductivity and hold up better against thermal fatigue over thousands of load cycles. Aluminum windings, on the other hand, still find their way into cost-sensitive projects. At the GUANGBIAN production facility in China, we've supplied both configurations, and when properly sized for the application, either material can easily surpass a 20-year service life.

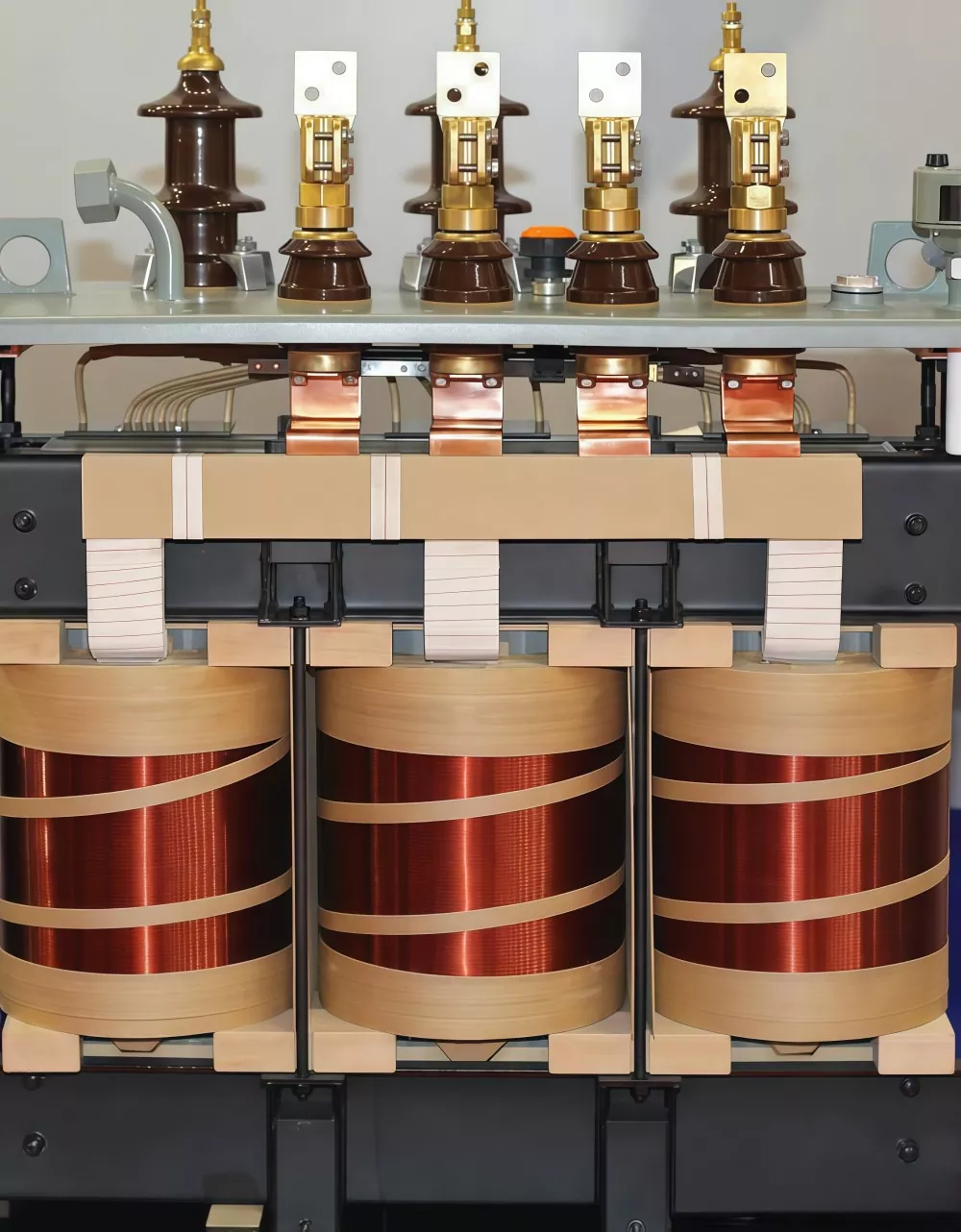

At the Guangbian factory, copper windings are commonly used for higher conductivity and better thermal durability, with aluminum also available for budget projects. Multi-layer cylindrical winding structures are applied to improve short-circuit strength and mechanical stability.

Vacuum oil impregnation is used to eliminate air gaps in the insulation system, helping reduce partial discharge and extend service life. These design choices ensure long-term reliability and stable operation under industrial load conditions.

Installation Notes for 75kVA Oil Immersed Transformer

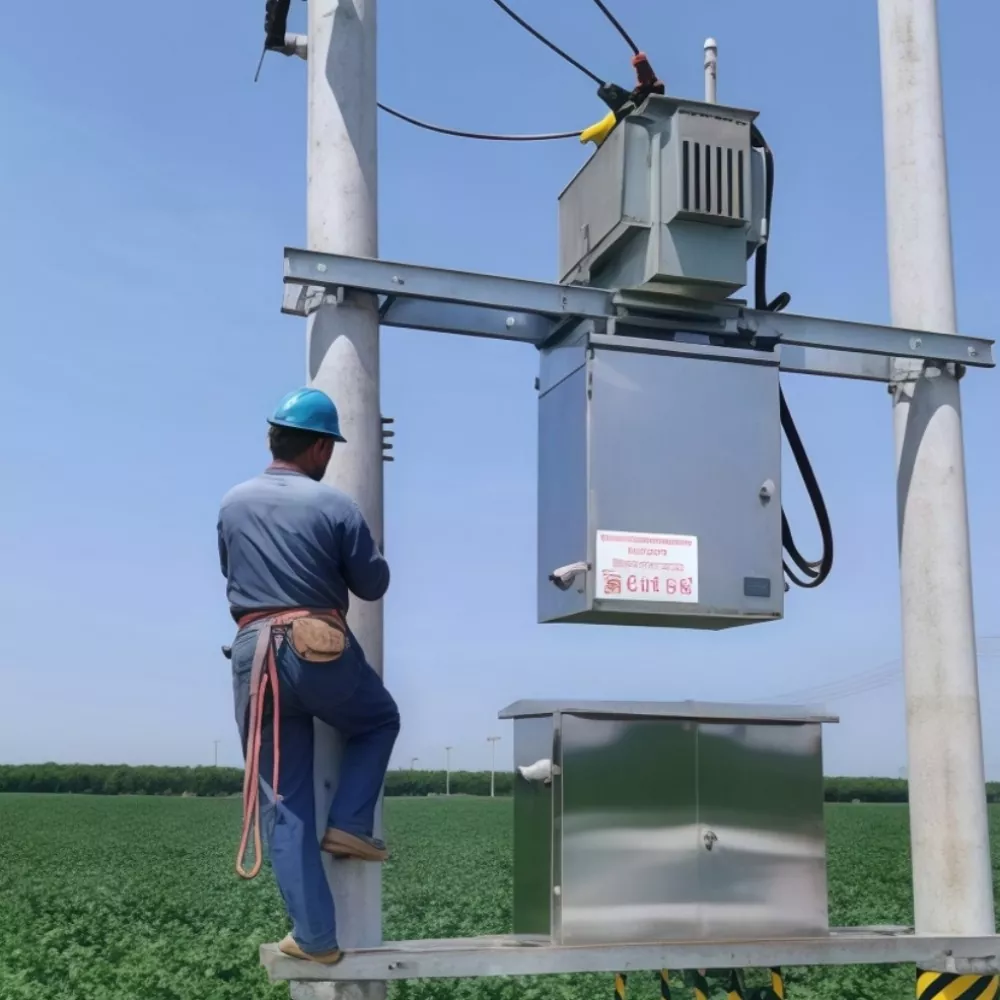

Proper installation directly affects long-term performance and reliability. Key points include:

Foundation leveling: Keep installation base within 2mm tolerance to avoid vibration, abnormal noise, and gasket stress that may lead to oil leakage over time.

Oil level check: Verify oil level under actual ambient temperature conditions, not just initial unpacking readings, to prevent low-oil operation and overheating risks.

Stable placement: Ensure the unit is firmly fixed to reduce mechanical stress during operation and short-circuit conditions.

Pre-energizing inspection: Confirm all terminals, seals, and insulation conditions before commissioning to ensure safe startup.

At the Guangbian factory standard practice, these installation checks are emphasized to ensure every 75kVA transformer operates safely and consistently in field applications.

Practical Points

No catalog description captures everything worth knowing. A few practical points that tend to come up after the order is placed:

Shipping timelines  Most units ship out of Shanghai. For Southeast Asian destinations, figure 2-3 weeks port to port. Middle East and Africa run longer—4 to 5 weeks once you factor in documentation processing. Building this into your project schedule avoids last-minute scrambling.

Export packaging. We use ISPM 15 compliant wooden crates as standard practice at our GUANGBIAN facility in China. That covers the majority of destination requirements. But if your project sits in a country with stricter phytosanitary protocols—Australia and New Zealand come to mind—let us know in advance so the documentation matches the inspection standards you'll face at customs.

Common service requests. The after-sales inquiries we field most often? External connection issues and oil level discrepancies. Neither tends to be catastrophic—routine inspections usually catch them early. Still, having a maintenance routine in place from day one prevents small observations from becoming unplanned downtime.

When you're sourcing a 75KVA Transformer from a manufacturer overseas, these operational details matter as much as the technical specifications. The right factory partner anticipates them rather than leaving you to discover them on your own.

Questions Worth Asking Before You Commit

Before the spec sheet becomes a purchase order, a few considerations tend to separate smooth projects from problematic ones:

Fault level at the installation point . Your local utility can provide this figure. It matters because the transformer's short-circuit withstand rating needs to match—or exceed—what the grid can throw at it during a fault event.

Expected load growth and efficiency targets . What are your projected load losses and no-load losses? Building in a reasonable margin upfront often costs less than replacing an undersized unit two years down the line.

Lead time realities . For a standard 75KVA Oil Immersed Transformer, production at our GUANGBIAN factory in China typically runs 2-3 weeks from order confirmation. That assumes straightforward specifications. Once you start layering in custom impedance values, non-standard vector groups, or add-on monitoring equipment, the timeline stretches. Factor that into your procurement schedule.

The right manufacturer doesn't just hand you a quote—they help you ask the questions that prevent surprises after the equipment lands on site.
